ODVA To SC Optical Patch Cable Waterproof Fiber To The Antenna
ODVA To SC Waterproof Fiber To The Antenna Optical Patch Cable
Our ODVA-SC fiber optic patch cord, together with the compatible optical cable, are becoming the standard interface specified in 3G, 4G and WiMax (Worldwide Interoperability for Microwave Access) Base Station remote radios and Fiber-to-the-Antenna (FTTA) applications. The patch cord however, is not limited to the above applications. The ODVA to SC fiber patch cord have passed tests like salt mist, vibration and shock and meet protection class IP67. It can prevent water from the fiber connector very well and the cable is with very excellent wear resistance so it is an ideal solution for outdoor environment and do not need to add other protection so it is well suited for industrial, aerospace and defense. But due to the compact and full wrap design, SC should be simplex and can not be duplex because the fiber capacity is limit.
Product Features of ODVA to SC Fiber Optic Patch Cord
1, Standard SC connector, well connected with standard waterproof adaptor ( inline type ODVA waterproof adapter for matching of two waterproof patch cords);
2, Both Single mode and multi mode fibers are available (OS1, OS2, OM1, OM2, OM3, OM4);
3, Protection grade reach IP67 and salt-mist proof, humidity proof, dust proof;
4, Plastic housing, compact and simple design with light weight and easy for operation;
5, With excellent heating property and suitable for broad temperature range;
6, Roll or reel packing is available.
Product Specification of Fiber to the Antenna Patch Cord
| Product description | Fiber patch cable made with far transmission cable, with SC/APC Simplex connector and ODVA waterproof plug for base station use |
| Waterproof plug | ODVA |
| Fiber Connector | SC/APC |
| Fiber type | Single mode |
| Cable type | Far transmission optical cable with PVC, LSZH, TPU jacket |
| Protection grade | IP67 |
| Waterproof plug material | Full plastic |
| Open way of waterproof plug | Screwed type |
| Insertion loss (IL) | ≤0.2db |
| Return Loss (RL) | Single Mode APC≥65db |
| Customization | Available |

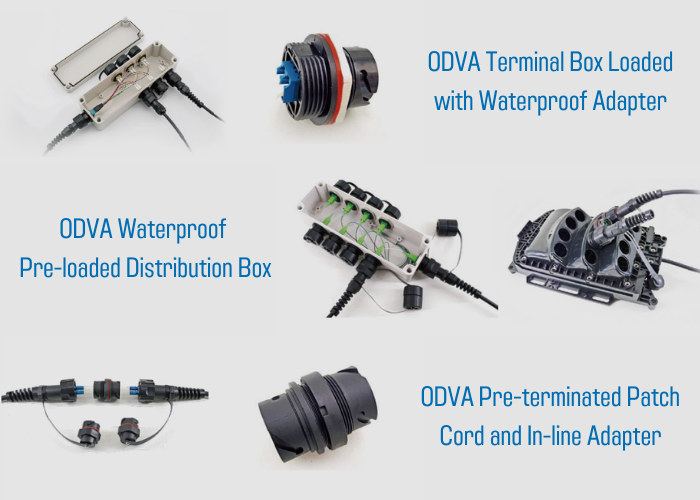

Begate provides compete solution for outdoor FTTA (Fiber To The Antenna ) RRU ruggedized fiber optic patch cords with waterproof connector, including:
1, Cable assemblies with all range of waterproof connectors: ODVA , Fullaxs, Mini-SC, ODC, Tactical, J599, PDLC, NSN and else
2, Inline adapter for matching of two waterproof patch cords
3, Mid-coupler adapter for waterproof terminal box or distribution box
4, Waterproof terminal box or distribution box from 4 cores to 24 cores
5, Non-waterproof MPO patch cord inside the box
