LC UPC To LC UPC Fiber Optic Adapter

Name: LC UPC To LC UPC Fiber Optic Adapter
Brand: OEM and ODM
Price: 1 USD

China LC UPC To LC UPC Fiber Optic Adapter wholesale

Brand Name : OEM and ODM

Model Number : LC/UPC Fiber Optic Adapter

Certification : CE/RoHS/ISO9001

Place of Origin : Shenzhen, China

MOQ : 1 piece

Price : Negotiable

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram, Paypal

Delivery Time : Samples within 3 days, bulk orders within 12 working days

Packaging Details : 1. 20 PCS per plastic box 2. Packed in carton box

Contact Now

Overview

Fiber optic adapter, sometimes also called coupler, is a small device designed to terminate or link the fiber optic cables or fiber optic connectors between two fiber optic lines. By linking two connectors precisely, fiber optic adapters allow the light sources to be transmitted at most and lower the loss as much as possible. At the same time, fiber optic adapters have the merits of low insertion loss, good interchangeability and reproducibility.

Features

* Low profile -no flange design
* Plastic body provides a light weight yet durable solution
* Used to connect Multimode and Single mode LC duplex and simplex fiber cables
* Bronze alignment sleeve supports Multimode applications
* Integrated mounting clip allows for easy snap in installation

Application

△ FTTX, FTTH
△ Gigabit ethernet
△ Testing and others
△ LAN, WAN, CATV networks
△ Telecommunication networks
△ Active device termination/Transceiver interface
△ Connect Different Types of Ceramic Ferrule Bores
△ Fiber communications, Data communication networks and processing, Industrial, Mechanical and Military.

Product Paramenters

Connector Type	LC-LC	Fiber Count	Duplex
Insertion Loss	≤ 0.2 dB	Fiber Mode	Single Mode
Return Loss	>50 dB	Color	Blue
Exchangeablility	≤ 0.2 dB	Fammability Rate	UL94-V0
Repeatability	≤ 0.2 dB	Working Temperature	-40~75°C
Durability	>1000 times	Storage Temperature	-40~85°C

Products Details

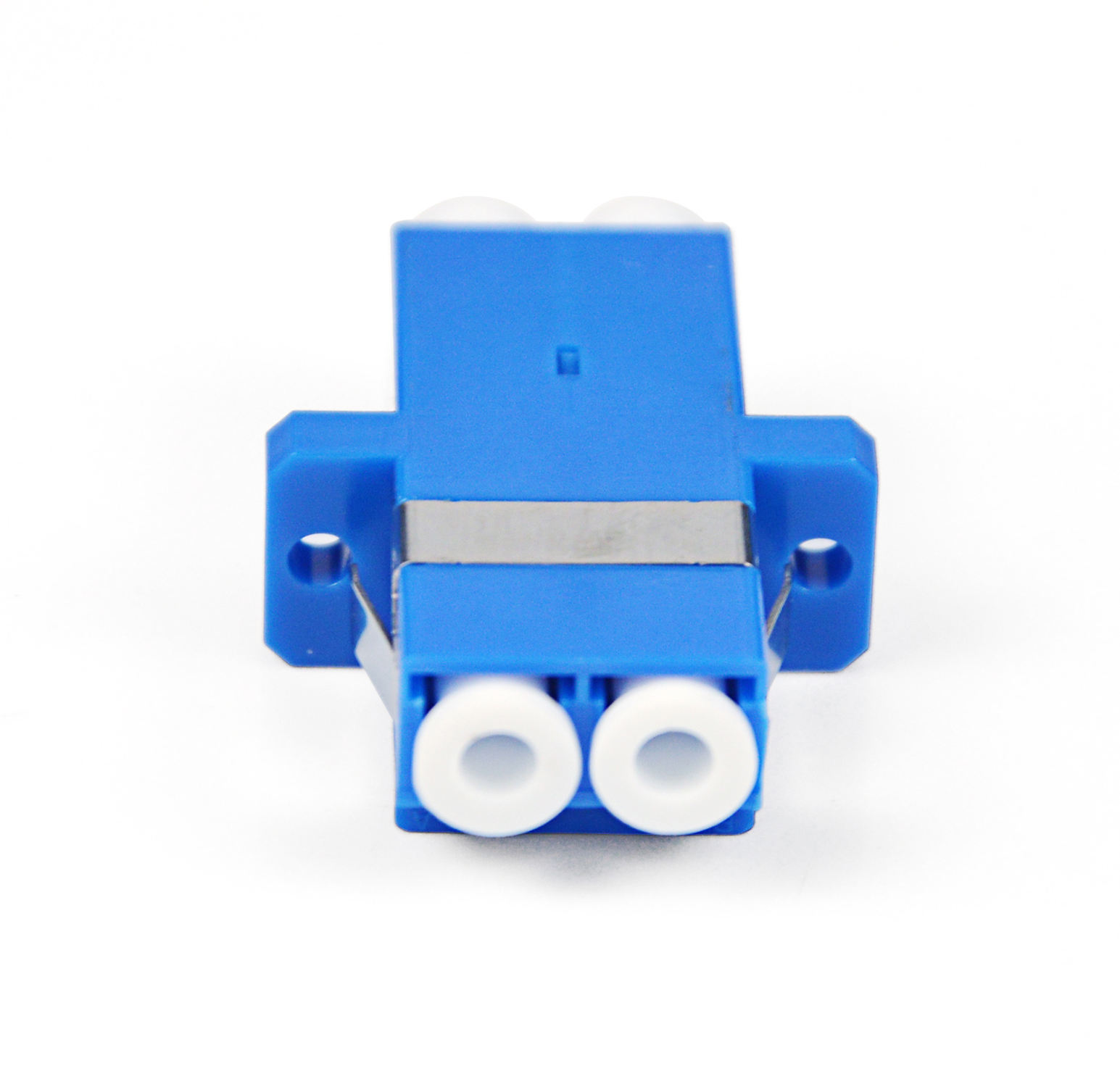

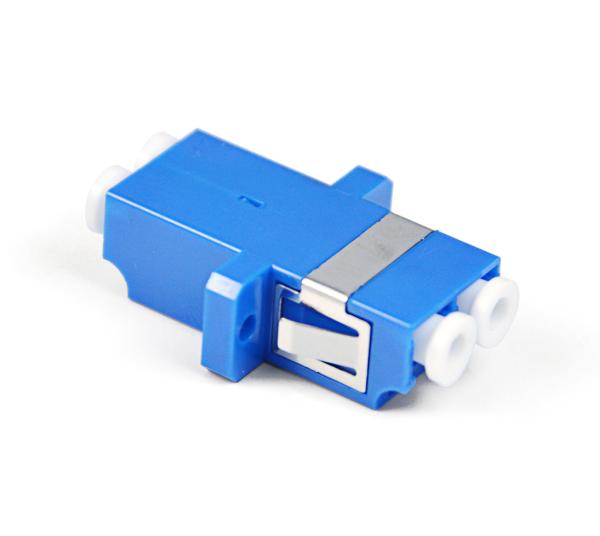

LC UPC To LC UPC Fiber Optic Adapter

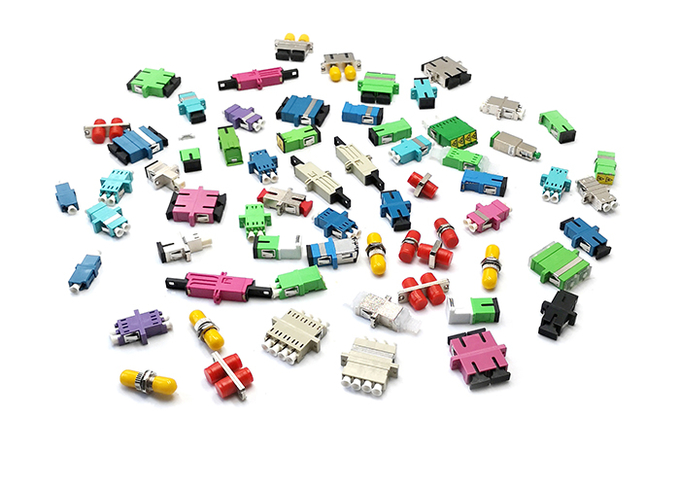

Adapter Collections:

Factory Workshop:

Why choose Begate?

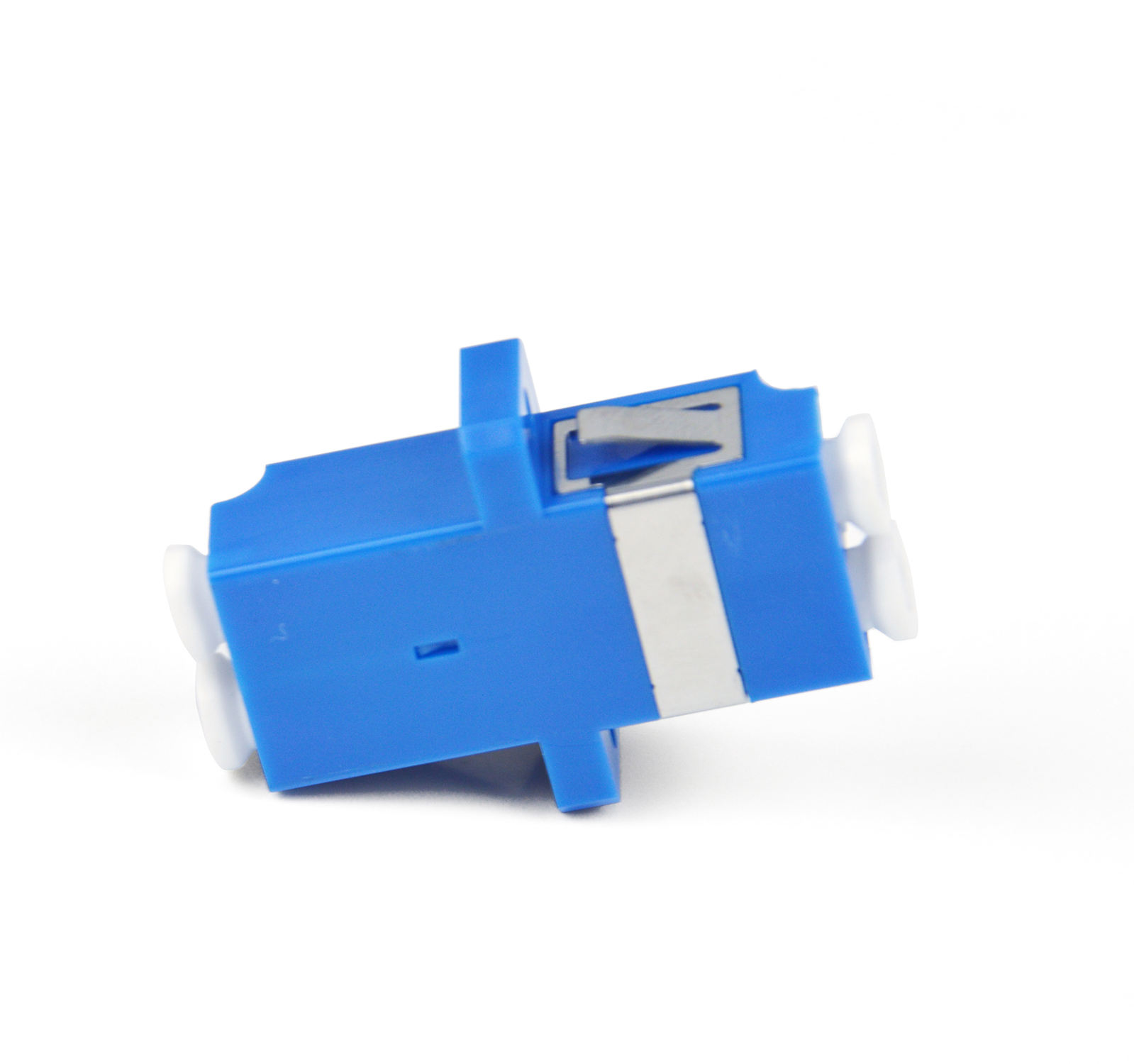

LC UPC To LC UPC Fiber Optic Adapter
